Stainless Steel Perforated Sheet Metals, 410, 304,316L, Round Hole,Square Holes, diamond Holes,Rectangular holes

Perforated Stainless Steel Specifications

Perforated stainless sheet, Grade 316, 8mm Hole,3mm thickness, 60% Filtration, Size 4 feet x 8 feet
Stainless 304 perforated panels sheet 600 x 300 x 1mm with 0.5mm staggered holes
Stainless Steel Perforated Wire Mesh Sheet, SS316, Round Hole Punched, 3mm Hole, 1000mm L x 500mm W x 0.5mm
Stainless Steel Perforated Metal Mesh Sheet, SS316, Round Hole Punched, 2mm Hole, 2000mm L x 1000mm Wx 1mm
26-gauge stainless steel 316H with 0.020” round holes perforated mesh in straight or staggered patterns staggered at 0.045”
1M x 1M Stainless steel with perforated slotted holes staggered 8mm x 25mm
Perforated stainless Steel sheet 708 mm round with 1mm round holes
SS 316L perforated stainless steel mesh in rolls
sheet, steel, perforated: 36"wd, 40" lg, 0.125" thk,0.188" rnd perforations, 316 stainless
ss316 perforated sheet x 0.5mm thick x 3mm hole x 6mm pitch x 450 pcs x 1m x 2m
 3mm perforated 304L stainless steel sheet

SS Materials:

SS is corrosion-resistant, resistant to fire and heat, suitable for high temperature works. Major ss materials are AISI304, 304L, 310, 316, 316L, 410, 430.

Perforated stainless steel plate 410 cold rolled mesh sheet, hot rolled or cold rolled
Thickness 0.8 to 2.0mm
Width 1m to 2m
Length 1m to 6m
Application: 410 stainless peroforated plate has a good oxidation resistance and intensity of medium temperature.Used in Chemical machinery, pharmaceutical equipment, food and beverage machinery, cigarette machinery, harvesters, dry cleaning machines, mesh silencers, refrigeration equipment and other industries.

Stainless steel 304 and 316 micron round hole perforated metal sheet
Material: SS304, 316
Thickness: 0.3 to 12.0mm

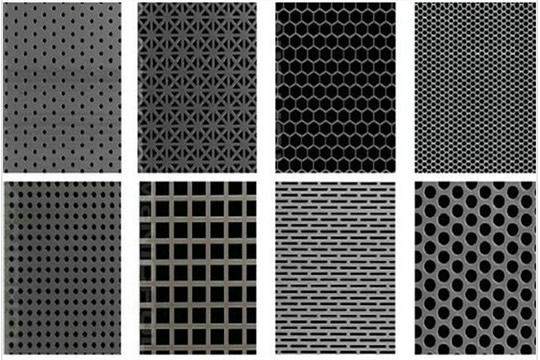

Hole shape: round, square, diamond,rectangular perforations, more
Sheet size: 1220*2440mm,1200*2400mm,1000*2000mm or customized
Surface treatment:
PVC coated
Powder coated
Anodized
Paint
Fluorocarbon spraying
Polishing

SS 304 round hole ss panels

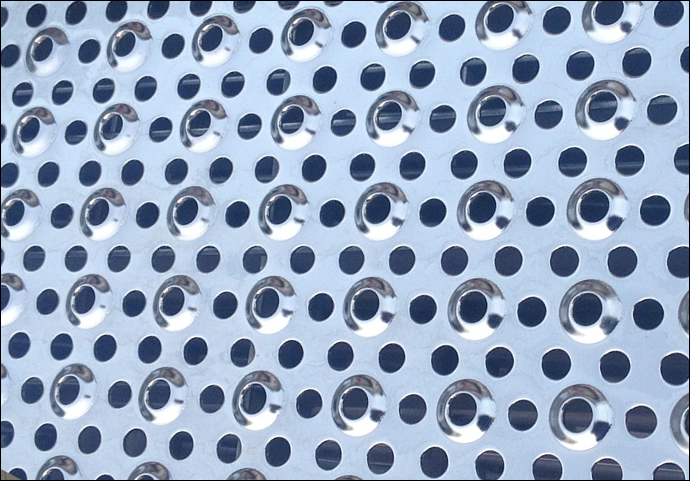

Raised non-slip perforated sheet

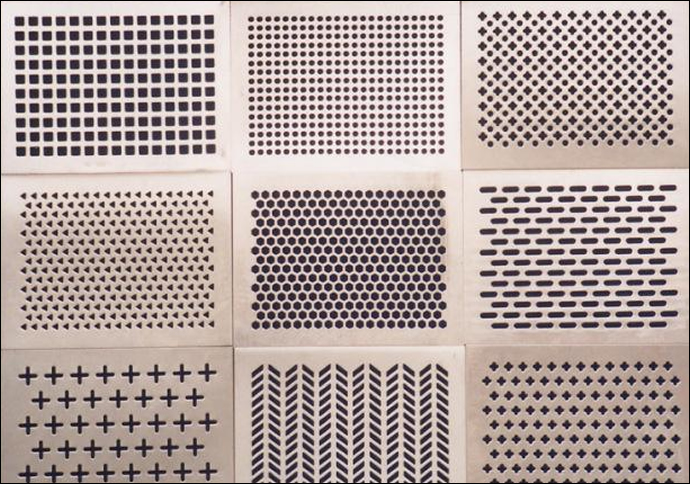

Perforations for SS Sheets

Application
Perforated stainless steel sheets can be used in many different applications, including filter, teset sieves, screens, diffusers, guards, ventilation, and architectural decoration.

Filter elements manufactured from perforated stainless steel sheet
Elements with 200 mesh size (75 micron aperture)
With threaded ends and
Diameter 10mm, length 100mm.

Slotted Hole Perforated Sheet, Architectural Facade

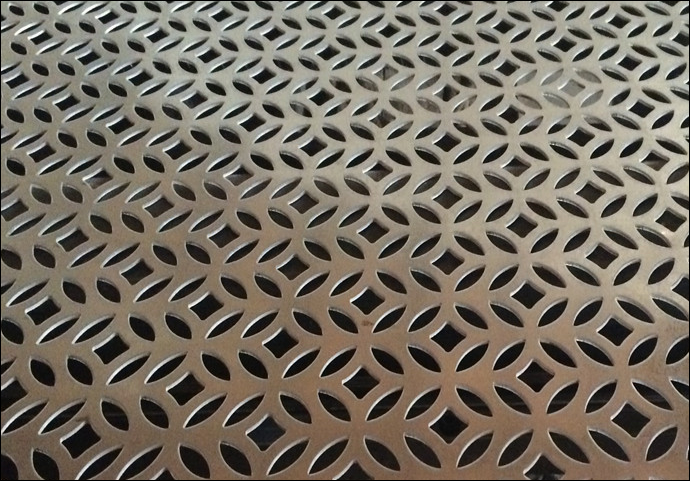

Decorative perforated sheet for facade cladding

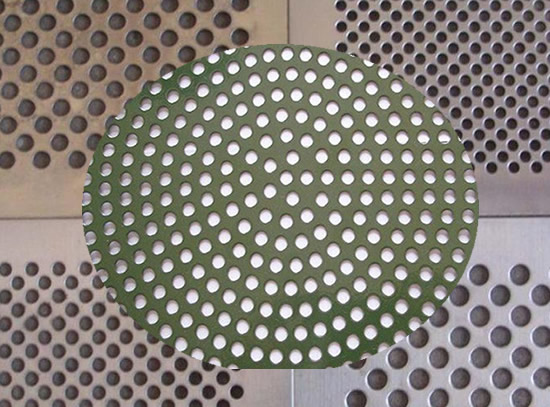

Circle or Round Hole SS Perforated Sheet Mesh Screen

Stainless Steel Micron Perforated Sheet for Sifting Uses

Big hole perforated stainless steel plates are used in fencing or partition uses. Micron round hole perforated ss sheets are used for making of perforated plate sieves for sand control and mine core sifting.

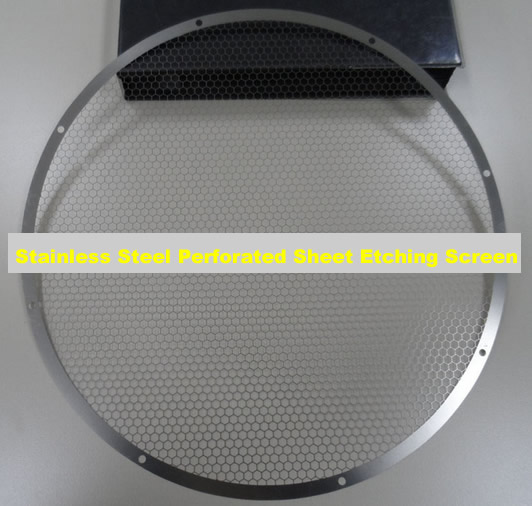

Stainless Steel Perforated Sheet Etching Screen

stainless steel perforated sheet etching screen


Patterns for Perforated Stainless Steel: The perforated round hole pattern is the most popular style for metal sheets, but it is also available in square and slotted holes.

Sugar Mill Screen Perforated Stainless Steel Sheets

Uses: Stainless steel perforated sheets are perfect for ventilation, filter and sieve, protection and decoration. It is manufactured from stainless steel sheets that are pressed through a die with the appropriate hole size pattern.Decorative Mesh

Materials: Stainless Steel.
Sizes and Specification:

Material:304,304L,316,316L,202,201,310S,309S
Thickness:Cold rolled:0.3mm-3mm
Hot rollled:3mm-50mm
Length: 1000-6000mm as your requirement
Width:1000-2000mm as your requirement
size:1000mm*2000mm,1200mm*2440mm,1219mm * 2438mm, 1219mm * 3048mm, 1250mm*2500mm ,1500mm * 3000mm,1500mm*6000mm or as customer’s requirement.

Features: Perforated sheets are lightweight, attractive, economical, and is easily customizable. A variety of hole patterns, materials and gauges are available for the customers choice.

Perforated SS Wall Cladding Decoration Panels

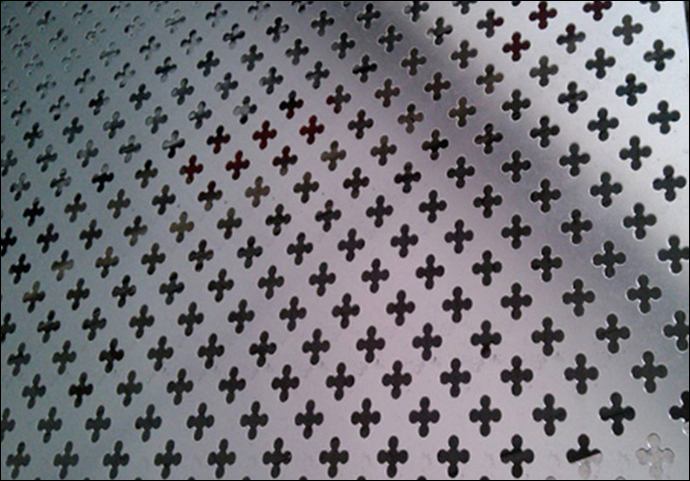

3mm Thick Decorative Hole Perforated Stainless Steel Sheet

Sheet Metal Plate Size:1.22*2.44M
Hole Type:Square, round, triangle, irregular, diamond, etc.
Mesh Lenth:3mm
Mesh Width:3mm

Perforated and Slotted Stainless Steel Panels

Round Hole Sheet

Hole Diameter Staggered Centers(inch) Sheet Thickness Open Area
Inch MM Inch MM
0.033  0.84 0.055 0.0165-0.0198  0.40-0.50 28.00%
0.045 1.14 0.066 0.0165-0.0198  0.40-0.50 37.00%
1/16 1.59 3/32  0.026-0.053  0.66-1.35 41.00%
1/16 1.59 1/8  0.046-0.053 1.17-1.36 23.00%
3/32 2.38 9/64 0.054-0.065 1.37-1.65 40.30%
3/32 2.38 5/32 0.026-0.079 0.66-2.00 33.00%
3/32 2.38 1/4 0.033-0.053 0.84-1.35 12.50%
1/8  3.17 3/16 0.026-0.129 0.80-2.89 40.00%
1/8  3.17 7/32 0.026-0.039 0.66-0.99 29.60%
5/32 3.97 3/16 0.026-0.065 0.66-1.65 63.00%
3/16 4.76 1/4 0.026-0.079 0.66-2.00 50.00%
3/16 4.76 5/16 0.029-0.059 0.73, 1.50 32.00%
1/4  6.35 5/16 0.026-0.079 0.66-2.00 58.00%
1/4 6.35 3/8 0.026-0.065 0.66-1.65 40.00%
1/2 12.70 11/16 0.059, 0.121 1.50, 3.00 48.00%
1/4 6.35 1/2 0.121-0.236 3.00-6.00 22.67%
5/16 7.94 5/8 0.237-0.315 6.00-8.00 22.67%
The above is for round holes,other special size can be customized as request or drawing.
