Galvanized Steel Perforated Metal Sheet Round Hole Opening, Slotted Hole, Square hole, Dimple, perforated non slip

We use high-quality raw materials and supply Carbon Steel (MS) Perforated Sheet in hot rolled, cold rolled and galvanized sheets:

Perforated steel sheets are popular industrial products made of high quality carbon steel, also known mild steel. Mostly treated with electro galvanizing or hot dipped galvanizing.
Metal, Galvanized, Sheet, 24 Gauge, in 4 ft x 10 ft Sheets, ASTM A653/A653M, Z275 Coating, G90
Metal, Galvanized, Sheet, 22 Gauge, in 4 ft x 10 ft Sheets, ASTM A653/A653M, Z275 Coating, G90
Metal, Galvanized, Sheet, 24 Gauge, in 4 ft x 10 ft Sheets, ASTM A653/A653M, Z275 Coating,Non-Beaded
Metal, Galvanized, Sheet, 22 Gauge, in 4 ft x 10 ft Sheets, ASTM A653/A653M, Z275 Coating,Non-Beaded
Q195 galvanized steel sheet, 1.5 mm electric galvanized
Galvanized sheet, 4’ x 8’ 14gauge, Electro Galvanized Sheet (Electrolyte Zinc Coated Steel)
Embossed metal sheet galvanized, in 3mm thickness
Carbon Steel Perforated Sheet 8ftx4ftx2mm with 10mm holes
Galvanized MS Perforated Sheet 8ftx4ftx2mm with 10mm holes
Perporate metal plate, galvanized, in 12 m x 900 mm x 4 mm thickness with 19mm holes
Round perforated, straight sheets 1m x 2m or 4 feet x 8 feet hot dip galvanized after punching

The size of the punching sheet produced:
Hole size: 1.15 to 10mm hole
Pitch : 2.5 to 12mm
Thickness: 1.2 to 4 mm

Newly developed products with the following specifications:

• Slotted Hole Sheet: 1/2" round slot ends by 3" long, staggered pattern.
  10 to 16 gauge thickness, ordinary steel or galvanized.
  Sheet size minimum 3 feet by 4 feet.
  Material used to fabricate bilge strainers, with flow rate requirements.
  Sheet(s) of perforated, slotted, 2.5 mm, galvanized steel. 16 or 22 gauge.
  3”X3” square hole .25 inch rod stock 31” tall x either 5 ft or 10 ft sections
• Galvanized Steel Perforated Sheet 275 GSM coating: Staggered Hole Dia:4 mm, Pitch: 6 mm 40% Free Area, Staggered Hole Dia: 5 mm Pitch: 7 mm 47 % Free Area.
  Galvanised steel plate, 3mm thick, in 4 x 8 feet or 5 x 10 feet, any standard dimensions.

Perforated Sheets or Panels, to control the particles in the air in order to comply with environmental regulations:

•
• Porouns sheets for windbreaks: Galvanized steel sheet, double layer of epoxy paint, porosity 30-50 percent, thickness 1.2 mm, length between supports of 6mts.


  Porosity options: 50 percent, 30 percent

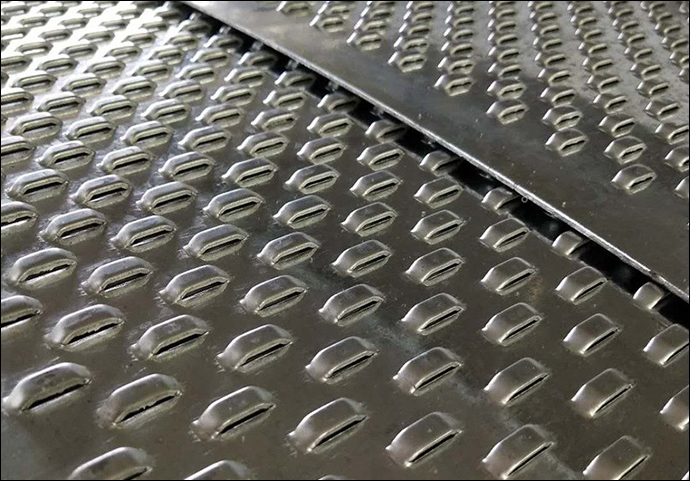

• Galvanised steel plate with semi-circle anti slipping perforated opening:

•

• Semi-Circle hole perforated mild steel, thickness 4.5MM to 6MM

Perforated Galvanized Carbon Steel, Diamond Hole, Round Hole, Square Hole, Five Point Star, etc

Perforated metal sheet, in 0.5, 0.6 mm thick, galvanized or plasticized panel

Perforated sheet in Galvanized Steel, and Black Steel

Hole diameter : 5mm
Pitch ( from center to cent ) : 10mm
Margin : 10 mm
Galvanized steel sheet size:
1.22 mm x 2.44 mm x 0.7 mm
1.22 mm x 2.44 mm x 0.9 mm
1.22 mm x 2.44 mm x 1mm
Black steel sheet size:
1.22 mm x 2.44 mm x 0.8 mm
1.22 mm x 2.44 mm x 1mm

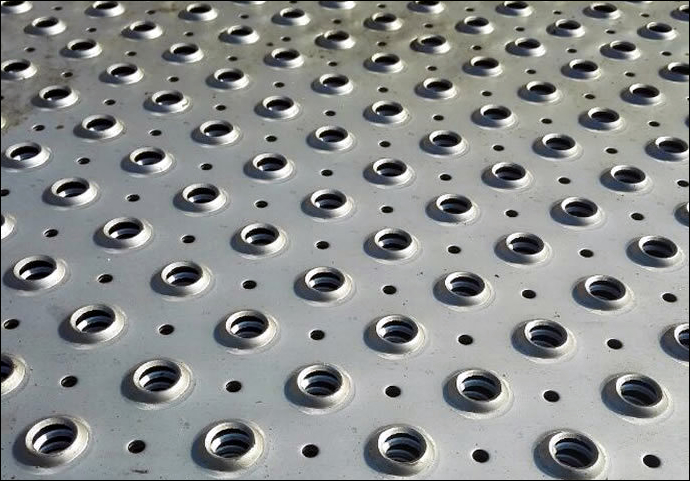

Perforated MS Sheet ( Mild Steel), Round Hole Dimple Pattern

In 3mm thickness in 40Mx2.2M sheet
Round diameter 3 mm
Thickness plate 1 mm
Size: 4' (w) x 8' (h)
Finish: Bright galvanised

4X10 perforated dimple sheet for platform truck flooring

MS Perforated Non-slip Mesh (Embossed Hole)

MS perforated sheet 4' X 8' X 3mm thick (6 , 8mm hole pattern)

Slotted Hole Sheet: 1/2" round slot ends by 3" long, staggered pattern. 10 to 16 gauge thickness, galvanized.
Sheets perforated, slotted, 2.5 mm, galvanized steel. 16 or 22 gauge.

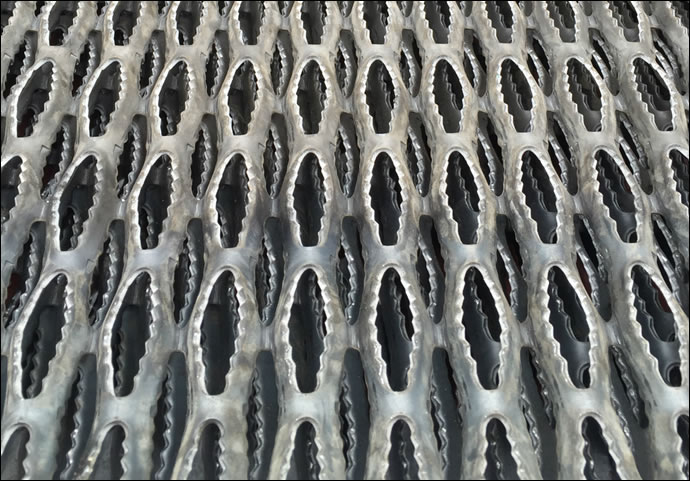

Opening: Non slip aggressive perforated mesh

Typical Perforated Carbon Steel Sheet Products: Flat Round Hole Perforated Sheet, Straigth and Staggered

Typical perforation patterns for steel sheets are round opening. Lamina perforated steel sheets are popularly used as security panels, architectural metal cladding panels or processed into perforated tubes.

Perforated steel plates are used for construction panels, filter screening, decorative sheet and grilles, steel fencing and shielding, partition and vent screen uses, hardware and furniture parts.

Industries Served:

Oil field drilling,

Mine screening,

Engineering,

Sifting of grains as grain screen,

Decorations and designs of buildings, as sound isolation sheet, decorative sheet for stairs, metal floor plate,
Fencing,
Decorative sheet and grille, various metal mesh sheet covers,
Making of kitchenware such as fruit basket, also tables, chairs and other furnitures.

Major Steel Sheet Products:

Description:
Galvanized perforated metal provides a durable slip resistant surface that easily retrofits over existing metal
structures or can be incorporated into new construction. And it is protected against rust which makes them ideal for
outdoor applications where corrosion is a concern. This kind of perforated metals enjoy the features of rust
resistance and corrosion resistance therefore it's widely used in corrosive environments.

Specification
Hole patterns: diamond hole, round hole, rectangular, scale hole, hexagonal hole and so on.
Surface treatment: Hot-dipped galvanized and electro galvanized.

Characteristic:
can be readily formed
can be painted or polished
easy installation
attractive apperance
wide range of thickness available
largest selection of hole size pattern and configuration
uniform sound abatement
light weight
excellent wear life and durable
superior abrasion resistance
accuracy of size

Surface treatment :

•       galvanzed or not
•       PE or PVC in many colors

Benefits: Perforated sheet metal flooring is easy to install and should provide a long service life.
Finish: Zinc coated.

Patterns available for steel sheets perforated:
Round is the most common opening;
Diamond;
Others.



Perforated Steel Sheet, 5 mm, 5 mm Round Hole, 1000mm x 500mm x 0.55mm

Pattern	Hole(mm)	Open Area	Pitch I (mm)	Pitch II (mm)	Hole Configeration
1	1.2 ø	42%	1.7	3.2	60°
2	1.5 ø	22%	4	4	45°
3	1.7 ø	45%	2.4	4.1	60°
4	2.0 ø	47%	2.8	4.8	60°
5	3.0 ø	33%	5	8.7	60°
6a	3.0 ø	51%	4	6.9	60°
6	4.8 ø	50%	6.5	11.2	60°
7	6.4 ø	43%	9.2	16	60°
8	8.0 ø	68%	9.2	16	60°
9	6.0 x 6.0	62%	7.6	7.6	Square
10	6.0 x 6.0	52%	9.1	7.6	Staggered
11	4.7 x 4.7	35%	8	8	Square
12	2.4 x 12.7	34%	4.8	15.1	Rect
13	6.0 A/F	79%	6.76	11.63	Hex

We also offer:

• 0.1mm Stainless Steel Perforated Sheet Decorative;
• 2mm Stainless Steel Perforated Metal Screen Sheet;
• 3mm Thick Round Hole Perforated Stainless Steel Sheet.
