Perforated Aluminum Sheet

Lamina offers perforated aluminum sheet for safety fencing barrier, anti-slipping tread plate and various architectural and decorative uses.

Perforated sheet made of aluminum is excellent at resisting moisture and strong for its light-weight.

Aluminum sheet perforated metal is rust free and free of maintenance all through the working life. Diamond pattern aluminum is slip-resistant and cosmetically appealing for hundreds of decorative applications.

Finishes: Aluminum sheet has brilliant, high polished, reflective shine or a dull mill finish.

Aluminum Materials
Aluminum is a light metal with high strength, low density.
Commonly applied alu grade for industrial processing: 3003, 5052, 6061, 6063

Features and Uses:
Perforated aluminum can be used in flooring, wall panels, decoration, metal partitions, security guarding and many other applications.

Perforated aluminum partitions can be used as physical barriers for automated machinery and other facilities. This is a simple but effective way to protect employees from the dangers presented by this equipment. Panels mounted along the perimeter of a work cell provide "fool-proof protection" from the hazardous area.

Patterns available:
Diamond;
Checker;
Round;
Decorative.

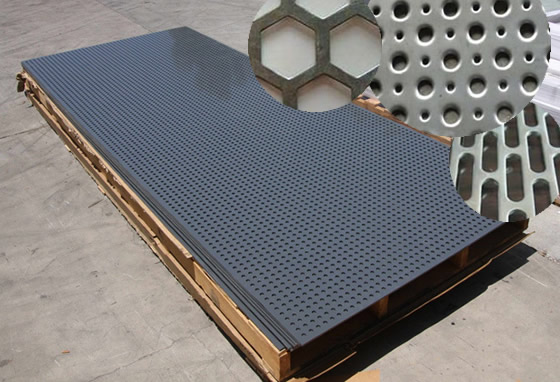

Aluminium Decorative Perforated Sheet Panels

1）Decorative aluminium perforated panels for wall decoration in hotels and various buildings;
2）Round hole aluminum perforated panels as speaker covering grille;
3）Checkered aluminum perforated plates for metal flooring and elevator cladding.

Standard Sizes for Aluminum Perforated Sheets:
Thickness : 0.15mm--15mm
Hole size : 0.8--30mm(round hole)
The most common sheet width and length are as following :
80mmX1000MM 100MMX1000MM 120MMX1200MM 150MMX1000MM.

Technical Information with Staggered Centers and Opening Areas:

Hole Diameter		Staggered Centers	Sheet Thickness		Open Area
0.045"	1.14mm	0.066	0.033-0.039"	0.84-0.99mm	37.00%
1/16"	1.59mm	3/32"	0.027-0.033"	0.68-0.84mm	41.00%
1/16"	1.59mm	1/8"	0.027-0.066"	0.68-1.68mm	23.00%
5/64"	1.98mm	1/8"	0.027-0.053"	0.68-1.35mm	35.00%
0.081"	2.06mm	1/8"	0.053-0.066"	1.35-1.68mm	38.00%
3/32"	2.38mm	5/32"	0.053-0.066"	1.35-1.68mm	33.00%
1/8"	3.17mm	3/16"	0.027-0.127"	0.68-3.23mm	40.00%
5/32"	3.97mm	3/16"	0.027-0.066"	0.68-1.68mm	63.00%
3/16"	4.76mm	¼"	0.027-0.127"	0.68-3.23mm	50.00%
1/4"	6.35mm	3/8"	0.033-0.111", 0.25"	0.84-2.82mm, 6.35mm	40.00%
3/8"	9.52mm	½"	0.053-0.082", 3/16"	1.35-2.08mm, 4.76mm	51.00%
3/8"	9.52mm	9/16"	0.059", 0.119"	1.50mm, 3.02mm	40.00%
1/2"	12.70mm	11/16"	0.033-0.127", 3/16"	0.84-3.23mm, 4.76mm	48.00%
1/4" Hex	6.35mm Hex	0.285	0.027-0.033	0.68-0.84mm	76.00%
3/8" Sq.	9.52mm Sq.	-	0.053-0.066"	1.35-1.68mm	51.00%
